1.2 kHz high-response precision servo in a slim single-board design

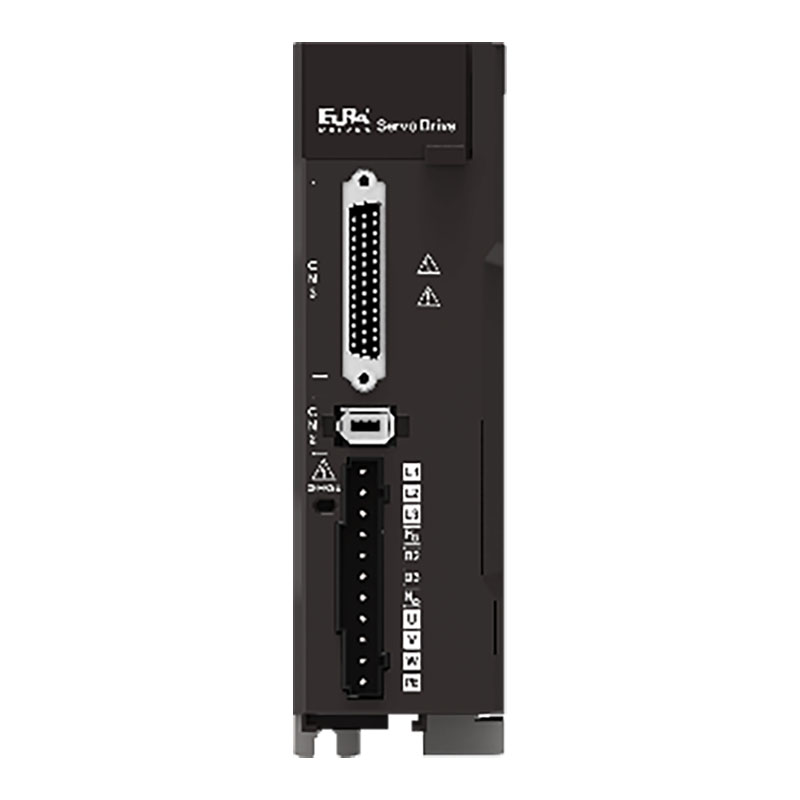

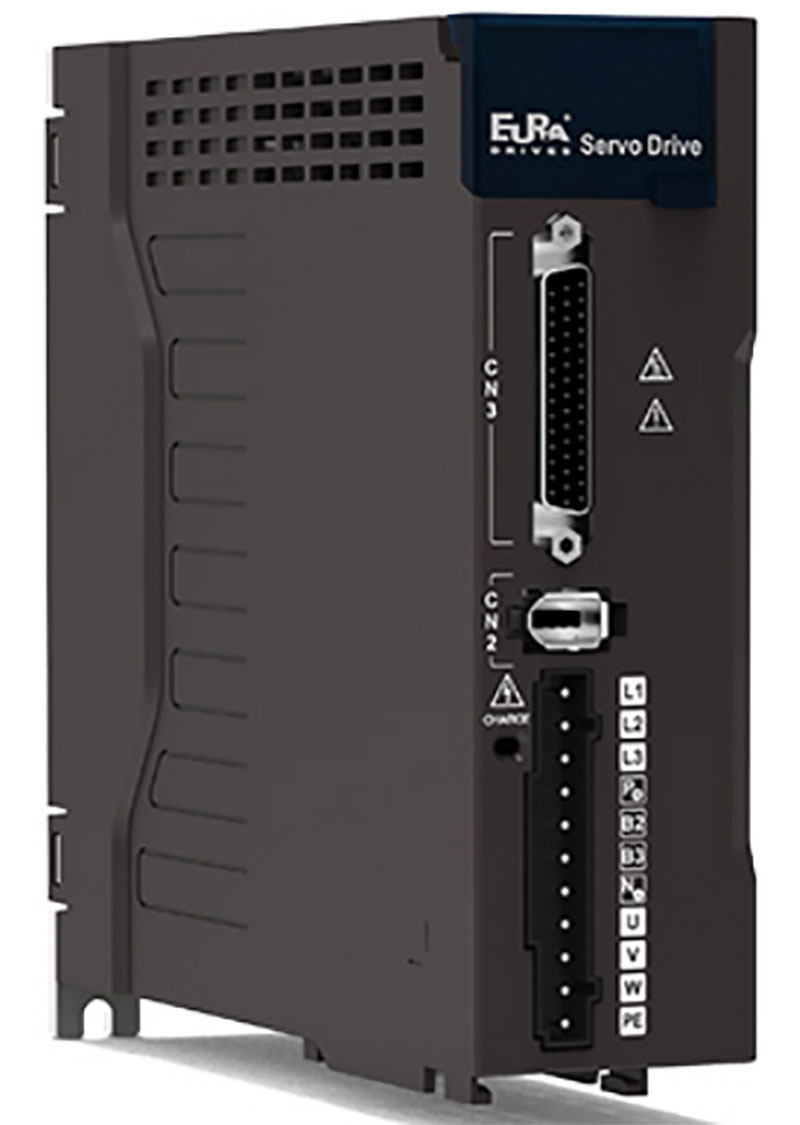

The SDE20-G is a high-performance general-purpose servo drive built on a compact single-board design for driving permanent magnet synchronous servo motors. Operating from single-phase or three-phase 220 VAC, it covers a 200 W – 1.8 kW power range across six models in two slim book-style formats (L2: 177×170×50 mm; L3: 176×180×58 mm), with continuous output currents of 1.5–8.0 Arms.
Engineered for demanding precision motion, the SDE20-G delivers a 1.2 kHz speed response frequency, ±0.01% speed fluctuation across 0–100% load, a 1:10,000 speed control range and 1-command-unit positioning accuracy. It accepts high-speed pulse commands up to 4 MHz and offers six control modes — pulse position, register position, analog speed, register speed, analog torque and register torque — combinable in mixed modes for complex motion sequences.
Auto-tuning intelligence — offline/online inertia identification, gain auto-adjustment, vibration suppression, model feedforward and friction compensation — simplifies commissioning, while a built-in PLC function and high-speed counter enable standalone sequence control. Communication is standard Modbus with RS485/RS232 for PC setup and monitoring, with optional CANopen and EtherCAT versions. With 17/23-bit absolute, 23-bit incremental and 17-bit magnetic encoder support, an integrated EMC C3-class filter and compliance with IEC/EN 61800-5-1 and 61800-3, the SDE20-G is a complete servo solution.
1.2 kHz speed response, ±0.01% speed fluctuation (0–100% load), 1:10,000 speed range, 1-command-unit positioning accuracy.
Pulse/register position, analog/register speed and analog/register torque control, freely combinable for complex motion.
Standard 500 kHz differential and 200 kHz open-collector inputs plus 4 MHz high-speed input; dual switchable electronic gear groups.
Standard Modbus (USB) with RS485/RS232; optional CANopen and EtherCAT versions for networked automation.
Supports 17/23-bit absolute, 23-bit incremental and 17-bit magnetic encoders, with encoder cable runs up to 50 m.
Offline/online inertia identification, rigid-level auto gain adjustment, low-frequency vibration suppression, model feedforward and friction compensation.
Standalone logic and counting capability without an external controller.
Class 1/Class 2 alarm protection, 4-key/5-digit LED panel, PC monitoring software, integrated EMC C3 filter.
| Power range | 200 / 400 / 750 W / 1.0 / 1.2 / 1.8 kW (6 models) |
|---|---|
| Input supply | Single-phase 220 VAC (S2) or three-phase 220 VAC (T2), −15%~+10%, 50/60 Hz |
| Output | 3-phase, 0–220 V, 0–400 Hz |
| Continuous output current | 1.5 / 2.8 / 3.5 / 4.5 / 6.0 / 8.0 Arms |
| Maximum output current | 4.2 / 8.4 / 9.8 / 12.6 / 16.8 / 22.4 Arms |
| Speed response frequency | 1.2 kHz |
|---|---|
| Speed fluctuation | ±0.01% (0–100% load) |
| Speed control range | 1:10,000 |
| Control modes | Pt / Pr / Sz / Sr / Tz / Tr plus mixed modes |
| Input pulse frequency | 500 kHz differential, 200 kHz open-collector, up to 4 MHz |
| Electronic gear ratio | 0.01 ≤ B/A ≤ 100, two switchable groups |
| Positioning accuracy | 1 command unit |
| Encoder support | 17-bit absolute (D70), 23-bit absolute (D71), 23-bit incremental (D52), 17-bit magnetic (D80) |
|---|---|
| Communication | Modbus via USB (default), RS485/RS232; options CANopen (F4), EtherCAT (F5) |
| Braking | Built-in braking resistor; options B2 dynamic, B3 combined, B6 external |
| Frame dimensions | L2: 177×170×50 mm; L3: 176×180×58 mm |
|---|---|
| EMC | C3-class filter (R3) integrated |
| Standards | IEC/EN 61800-5-1:2007; IEC/EN 61800-3:2004/+A1:2012 |
| Applicable load inertia | < 5× motor inertia |
Not sure which model fits your machine? Contact us with your application details — our team will recommend the right drive, motor and options.
